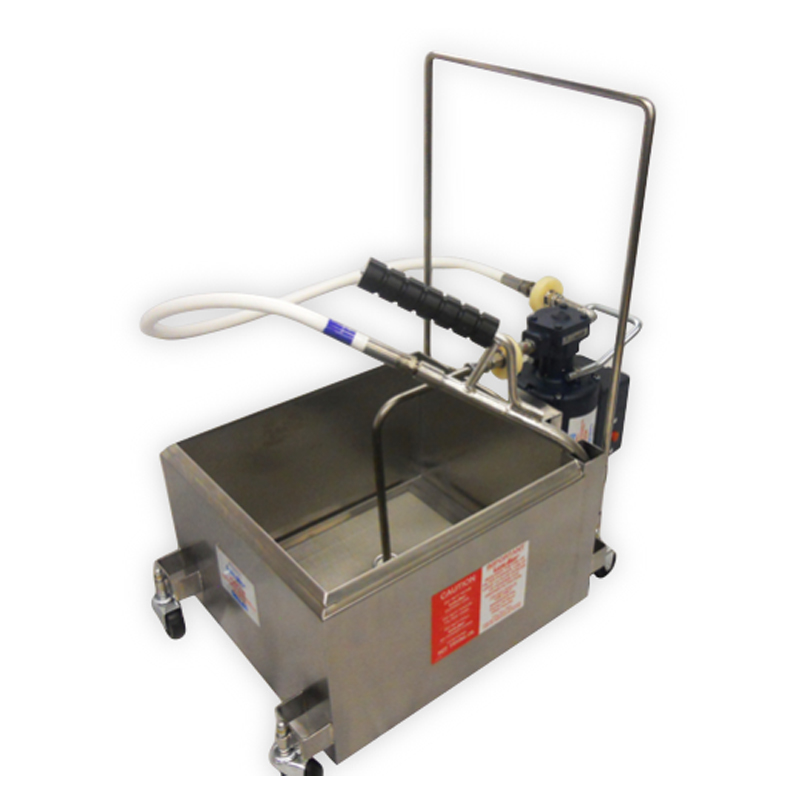

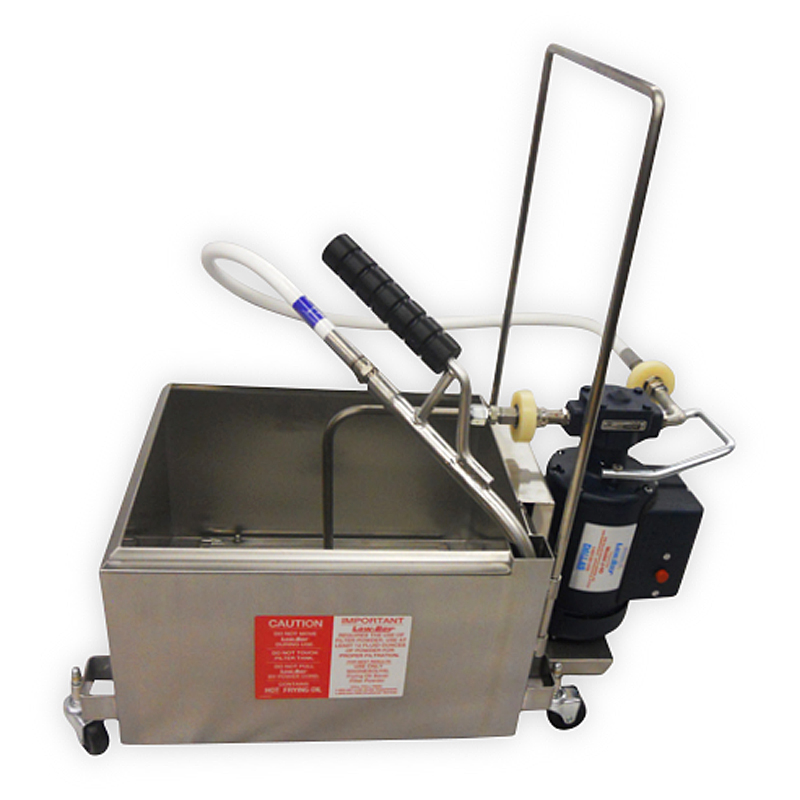

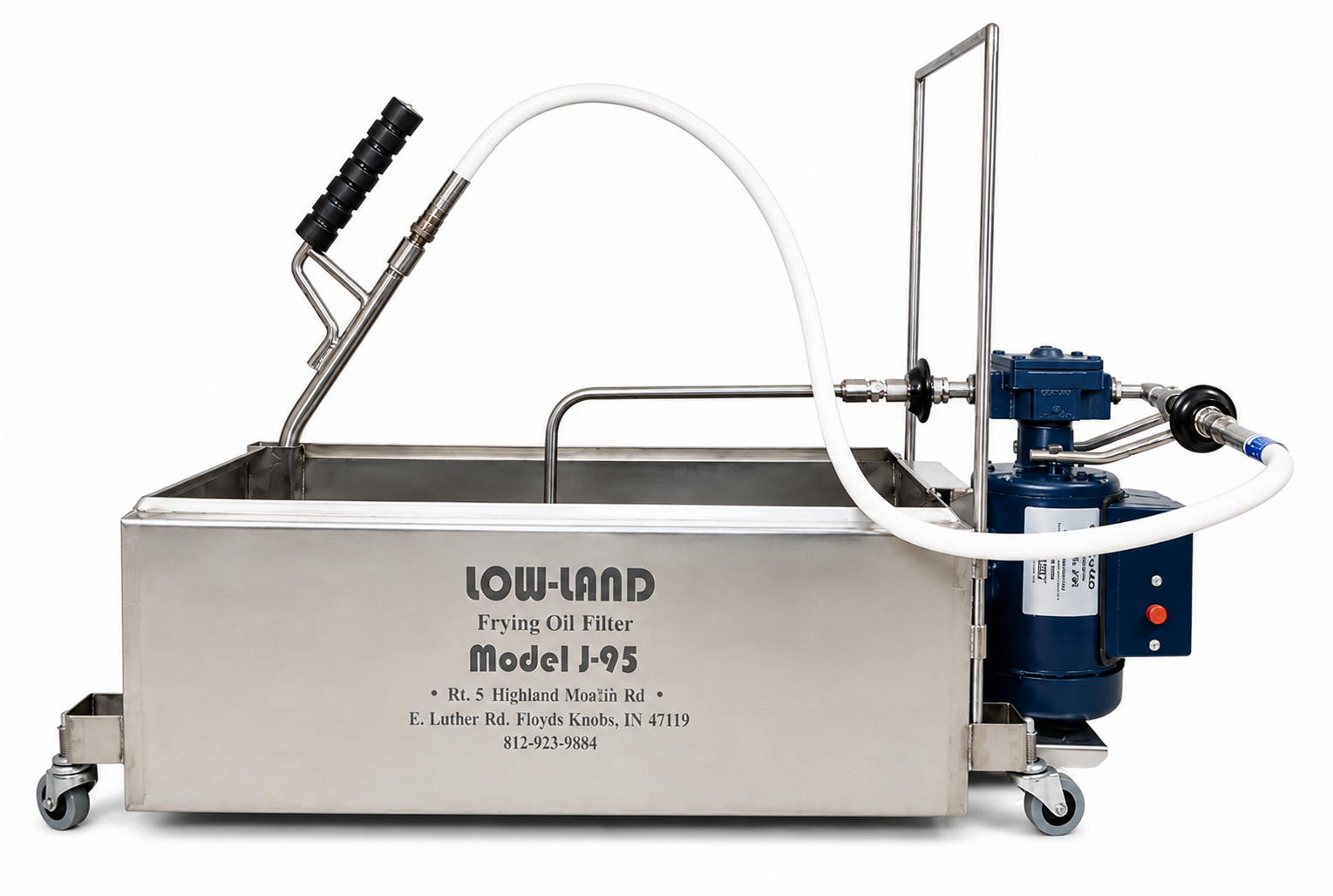

Low-Boy J-95 Filter Machine with Filter Leaf Screen

Enhanced Mobility and Storage

The J-95 features a robust stainless steel filter tank mounted on four ball-bearing swivel casters, ensuring effortless mobility across various kitchen environments. Its compact design facilitates easy maneuverability and allows for convenient storage options, making it ideal for kitchens with limited space.

Safety and Convenience Features

Equipped with a 5’ high-temperature return hose that includes a safety handle, the J-95 enhances user safety during operation. The system also features quick-connect insulators that greatly simplify the setup and breakdown process, making it a user-friendly option for busy commercial kitchens.

Efficient Filtration Design

Designed to handle heavy crumb loads effectively, this model features a stainless steel filter leaf assembly that eliminates the need for costly filter paper, making it particularly adept at managing high-volume frying applications with significant amounts of food debris. Customers dealing with heavy crumb loads, especially from flour, consistently choose the LowBoy filtration system for its superior performance. The system employs a durable screen mesh for filtering, which is more robust and effective at extending the lifespan of frying oil by efficiently removing both solid and soluble contaminants. The LowBoy’s advanced design sets the industry standard for handling heavy crumb loads.

Key Features and Advantages

This durable, mobile, and rapid oil filtration system efficiently eliminates both solid and soluble contaminants. The robust stainless steel filter tank and leaf assembly ensure longevity and consistent performance, significantly reducing expenses on paper filters. Designed for simplicity, the system is easy to assemble and disassemble, enhancing usability and maintenance.

Low Boy Directions For Use and Assembly

Standpipe and Filter Assembly

We demonstrate the assembly using a filter paper envelope, applicable to any filter media. On a clean, level surface, insert the metal insert into the filter envelope, ensuring the threaded fitting emerges through the envelope’s hole. Securely screw the standpipe onto the threaded fitting. Adjust the standpipe to face the envelope’s opening, fold over the envelope, and secure with the provided clips. Your filter assembly is now complete.

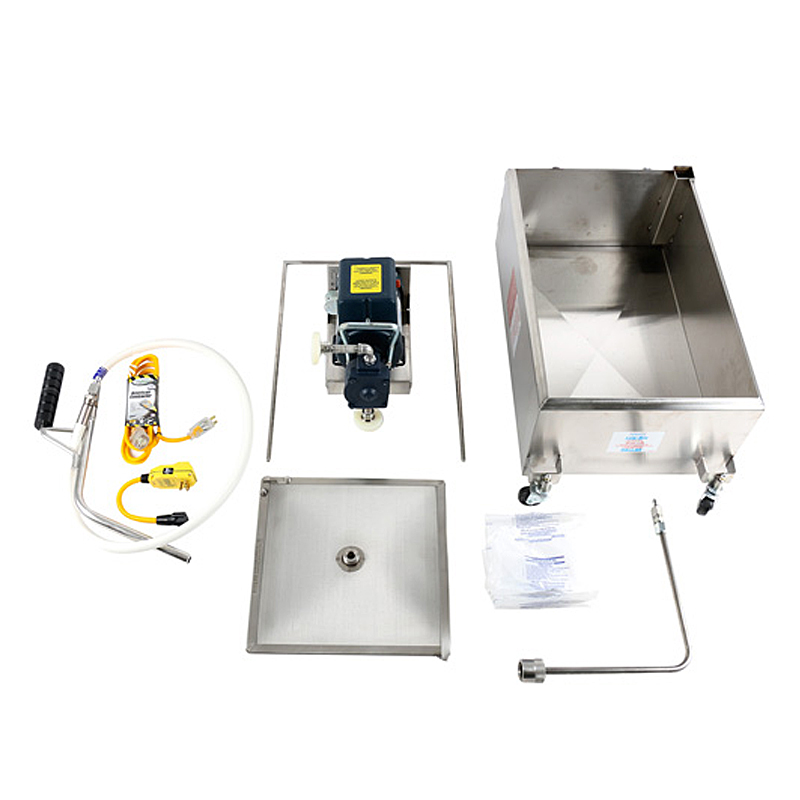

Motor, Hose, and Filter Cart Assembly

Attach the filter pump motor assembly between two welded tabs at the end of the filter tank. Center the standpipe and filter envelope assembly in the filter tank. Secure the quick-connect fittings to lock the assembly in place. Position the nozzle assembly in the tank’s holster and secure it. Install the filter tank handle onto the rear brackets. Finally, connect the power setup—plug the motor into the supplied GFCI and connect to a power source. You are now ready to begin filtering.

Low Boy Disassembly and Cleaning Procedure

Once the Low Boy filter machine has cooled down and can be safely handled, begin disassembly by unplugging the GFCI and power cord. Detach the hose and nozzle assembly, allowing any remaining oil to drain back into the filter tank. Remove the standpipe assembly, filter pump motor, and handle. Unscrew the standpipe from the insert and remove the filter clips. Discard the used filter envelope. Avoid using water or cleaning solutions in the pump as it may cause significant damage. Clean any remaining sediments from the filter cart with hot water, dry all parts with a clean towel, and let them air dry overnight, disassembled.

• Capacity: 95 lbs
• Tank Dimensions: 27″ x 17″ x 10 1/4″
• Electrical specifications (includes overload protector): 115V/60 Hz
• Video Tutorial: How to operate the LowBoy Filter Machine
• Downloadable Lowboy Filter Machine Manual 2023
